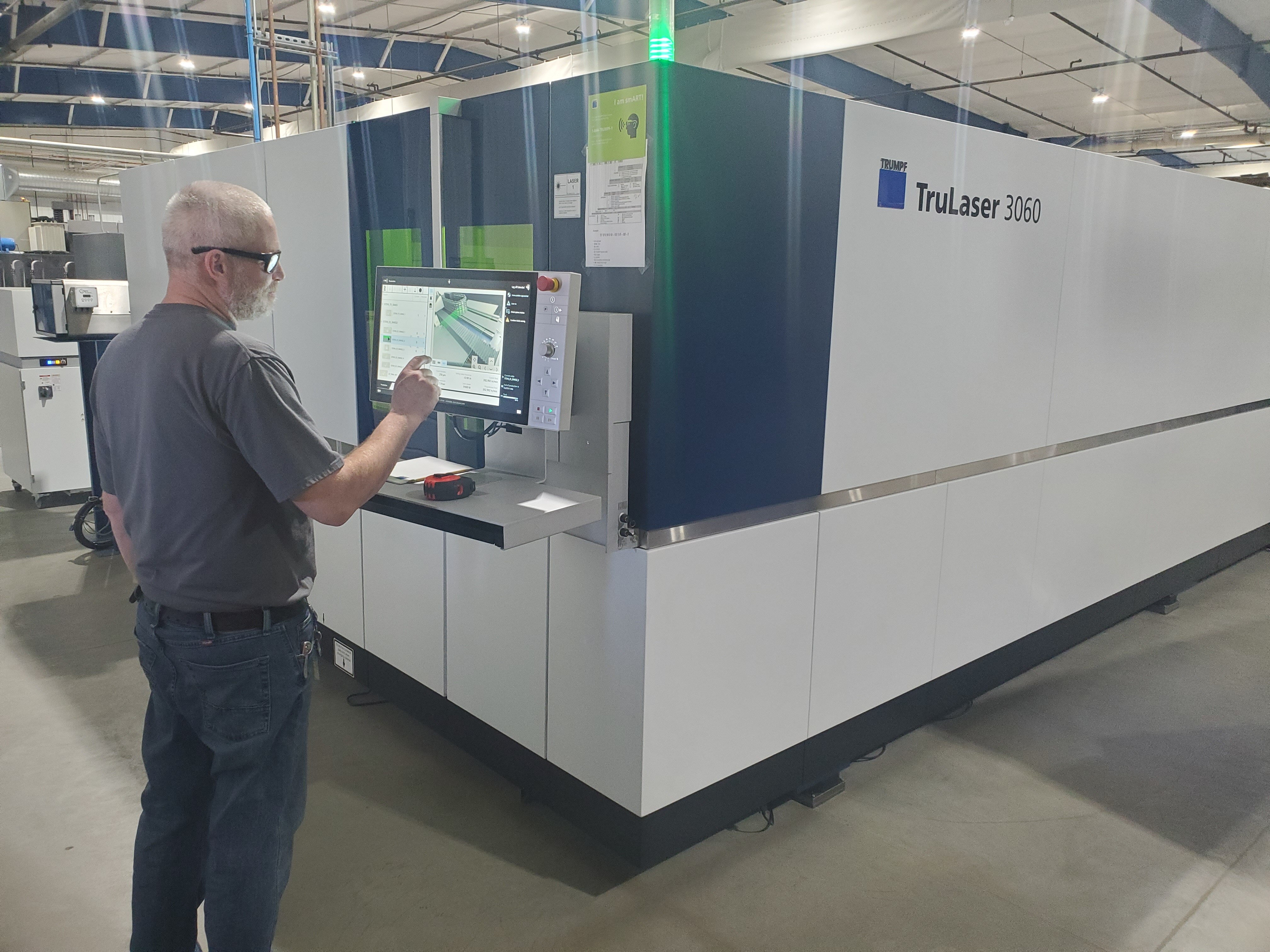

LASERS

Trumpf 6050 6000 Watt metal sheet & plate laser cutter: Cutting area – 84” x 240”;
load/unload table, nitrogen capable

Trumpf 4050 5000 Watt metal sheet & plate laser cutter: Cutting area – 84” x 160”;
load/unload table, nitrogen capable

BRAKES

Bystronic Xpert 650/6200 7 Axis Hydraulic CNC Press
Brake 716 ton x 240”

Accurpress Accel Precision with 9 Axis CNC
Control: 190 ton x 144”’

Accurpress 725012 with Dual Axis CNC
Control: 250 ton x 144”

Accurpress 7608 with Dual Axis CNC
Control: 60 ton x 96”

ADVANCED WELDING TECHNOLOGIES

MIG and TIG welding capabilities up to 20,000 lbs

MACHINING AND TURNING CENTERS

Haas VF5 CNC Vertical Mill, 40 taper, x=50”, y=26”, z=25”

Vertical Mills: Turn Pro GS18V and Bridgeport

Okuma Millac 852V II CNC Vertical Mill, 50 taper, x = 80”, y = 34”, z = 30”

Lathes: Dianichi DLG-30 Engine and LeBlond Regal, 15” x 30”

Okuma LB 4000 BBMY 1500 CNC Lathe, 60” travel x 17”
max. diameter, w/Live Tooling

SAWS

Vertical Band Saws: Hyd Mech V18 Series II

Horizontal Band Saw: BTM with auto-feed opening 12″
cut height 10”

METAL ROLLS

Cole-Tuve 4-Roll, double-pinch roller with cone bending
attachment: 122” x .25” (14” minimum roll)

Heller 52050 Pinch Roller: 72” x .1875” (9” minimum roll)

14 Gauge Pincher Roller: 36” x .0641” (5” minimum roll)

SHEARS

Pacific Hydraulic Shear: .5” x 144” with 36” backstop, .5” MS or .375” SST

BEADBLAST ROOM

Glass Bead Blast Room (Stainless), 30’L x 12’W x 11’ 10”H

ProForm Fabrication has been a regional leader in the manufacturing of quality assemblies for over 80 years. Our 90,000 square foot facility is home to state-of-the-art robotic welding technology center, over 20 weld stations, and a team of highly experienced welders working in the metal and stainless steel industries. Whether your welding needs include complex projects or general production, we deliver outstanding quality, on-time and at a competitive price.

TRADITIONAL WELDING FOR STEEL, STAINLESS STEEL & ALUMINUM

Gas Metal Arc Welding (MIG): Gas metal arc welding or GMAW, also referred to as MIG, is an electric arc welding process in which an arc is struck between a consumable wire electrode and a work piece. Shielding is provided by an inert gas, hence MIG for metal inert gas.

Gas Tungsten Arc Welding (TIG): Gas tungsten arc welding or GTAW is an arc welding process that uses a non-consumable tungsten electrode to produce the weld. The weld area is protected from atmospheric contamination by a shielding gas, and a filler metal is normally used to seal the joint.

Shielded Metal Arc Welding (Stick): In shielded metal arc welding or SMAW, an electric arc is established between a flux-coated consumable rod electrode and the workpiece. A gaseous shield is provided by vaporization of the flux coating. SMAW is frequently referred to as “stick” welding.

Spot Welding: Electric resistance spot welding is a process in which contacting metal surfaces are joined by the heat obtained from resistance to electric current flow. Work pieces are held together under pressure exerted by the electrodes.

Orbital Welding: A specialized welding technique whereby the arc is rotated mechanically 360° (180 degrees in double up welding) around a static pipe, in a continuous process for high quality repeatable welding. Also, offers optimal welding quality passing the most stringent testing (x-ray inspection) weld after weld.

ROBOTIC WELDING

We have an articulating robotic welder for mild and stainless steel:

• Panasonic PerformArc 1025, TA-1400G2, 60” Working Diameter

Features of our robotic welders include:

• Rotating fixture tables reduce set-up times by allowing operators to load and unload while parts are being welded.
• MIG welds are extremely consistent and clean improving appearance and reducing finishing times.
• Six axis motion allows the torch angle to maintain correct weld position at all times.
• Cost savings opportunities for medium to high volume weldments.

ProForm comes from a rich heritage of over 85 years of sanitary stainless steel innovation and fabrication. We understand the complex requirements, superior craftsmanship, and immaculate finishing needed in the sanitary stainless steel industry. Our welders and fabricators are capable of making large weldments and equipment. We have a laser bed and press brake capable of handling 240” in length.

Our welders are known for their fine craftsmanship and quality welding. We comply with 3-A and our facility complies with ISO 9001. Our craftsmen build complex equipment and can blast, grind or polish to your specifications. Over the years we have fabricated many different styles, parts, components and equipment.

FOOD PROCESSING

We work with your design requirements to make sure that our equipment can stand up to the challenges of a 24-hour, 7-days a week, process environment. ProForm designs with ease of cleaning and safety in mind.

PHARMACEUTICAL PROCESSING

ProForm has demonstrated competencies in fabricating equipment in the highly demanding pharmaceutical processing industry. We understand the stringent documentation and finishing requirements in the sanitary stainless space.
